Land Rover Discovery 1&2 Load Bar Kit/Gutter Mount - By Front Runner

Land Rover Discovery 1&2 Load Bar Kit/Gutter Mount - By Front Runner

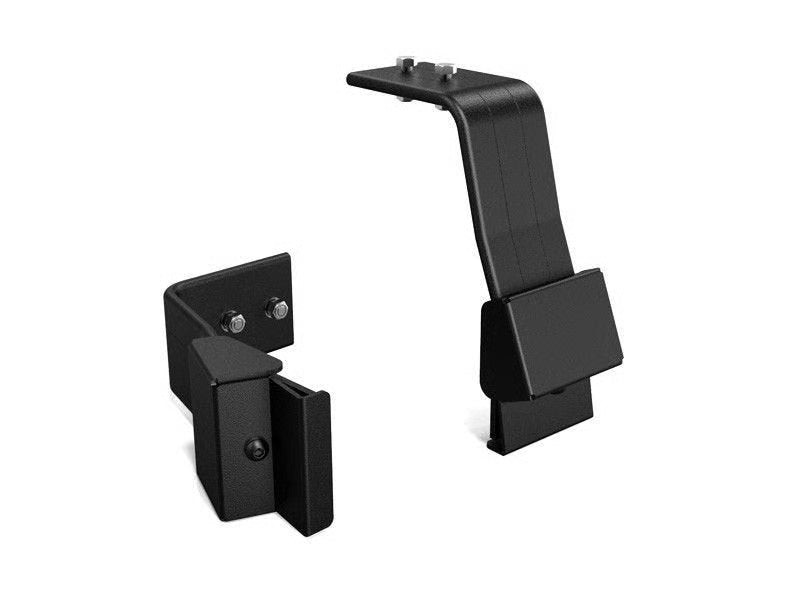

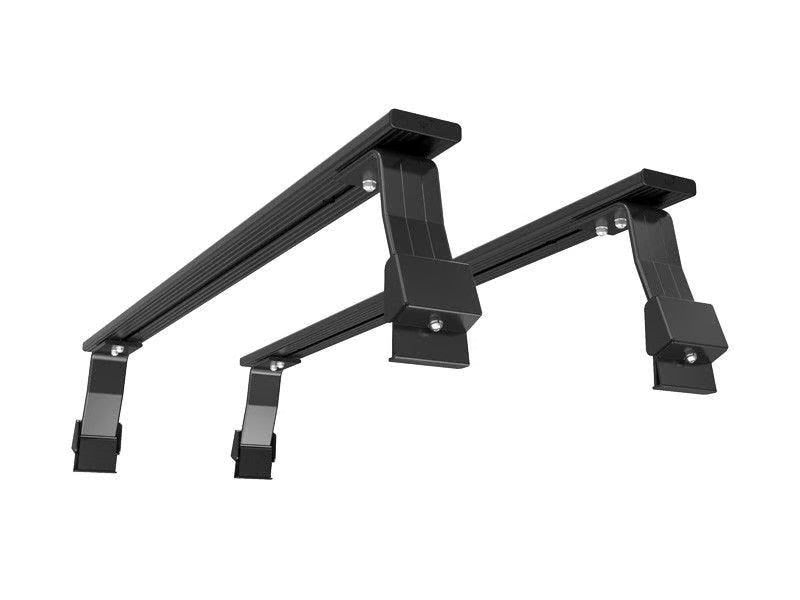

A set of Gutter Mounted Load Bars used to transport gear on the roof of your vehicle when there’s no need for a full Front Runner Roof Rack. This low profile, smaller footprint solution includes 4 265mm Gutter Mount legs, 2 1425mm Load Bars, 1 10mm Roof Load Bar Wind Deflector and fitting instructions  - all the components necessary to mount the Front Runner Load Bars to a vehicle with gutters.

Consisting of:

2 x LASS109 - No 9 Leg 265mm (Pair) - by Front Runner
1 x LBSK016 - Roof Load Bar Pair 1425mm(W) - by Front Runner
1 x WDLB001 - Load Bar Wind Deflector / 10mm - by Front Runner

Material used:

Black epoxy powder-coated T6 aluminium
High strength steel

Approximate Installed Weight 8kg (18lbs)

The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Load Bar Kit, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot or Grab-On Foot Foot listed above.

If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8") to the height of the Legs listed above to determine the height of the rack from your vehicle’s rain gutters.

If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:

Width 130mm (5")
Length 1540mm (61")
Height 195mm (8")

Shipping Weight:

Weight 9.7kg (21.4lbs)
